Core Manufacturing Steps:

1. Design & Engineering (CAD/CAM): Initial phase involves sophisticated CAD modeling and FEM (Finite Element Method) analysis to optimize structural integrity, airflow dynamics, and thermal efficiency. All components are selected to meet specific operational demands and hygiene requirements.
2. Material Procurement & Verification: Utilizing only certified food-grade stainless steel, typically SUS304 or SUS316, for all internal and external surfaces to ensure exceptional corrosion resistance and hygiene. Other components like heating elements, fans, and control systems are sourced from reputable suppliers (e.g., Siemens, Schneider, Omron). Material certificates (e.g., EN 10204 3.1) are rigorously checked.
3. Precision Fabrication (Laser Cutting & CNC Bending): Stainless steel sheets are precisely cut using advanced laser cutting technology, ensuring accurate dimensions and minimal material waste. Subsequent CNC bending machines form panels and structural elements with high repeatability and tight tolerances.
4. Hygienic Welding (TIG Welding & Passivation): All joints, especially within the processing chamber, are TIG (Tungsten Inert Gas) welded. This process provides strong, smooth, crevice-free seams essential for preventing bacterial entrapment and facilitating thorough cleaning. After welding, components undergo passivation to restore the passive chromium oxide layer, maximizing corrosion resistance.
5. Insulation & Assembly: High-density, food-safe thermal insulation materials (e.g., mineral wool with a density of 100-150 kg/m³) are meticulously installed between the inner and outer stainless steel walls. This minimizes heat loss, ensuring energy efficiency and stable process temperatures. Components like doors, air ducts, heating coils, and fan systems are then integrated.
6. Component Integration & Electrical Wiring: Installation of heating elements (electric or steam), high-efficiency circulation fans, smoke generators (sawdust friction, liquid smoke, or wood chip options), shower systems, and precise temperature/humidity sensors. Electrical wiring is performed according to international standards, ensuring safety and reliability.
7. Control System Development & Calibration: The PLC (Programmable Logic Controller) based control system with HMI (Human-Machine Interface) is programmed to manage multi-stage processing recipes (drying, smoking, cooking, showering). Sensors are calibrated to ensure highly accurate temperature and humidity readings, crucial for consistent product quality.
8. Quality Control & Testing: Each unit undergoes rigorous testing, including:
   • Leakage Test: Chamber pressure and smoke tightness verification.
   • Functional Test: Comprehensive testing of all mechanical and electrical components.
   • Temperature Uniformity Test: Mapping internal temperature distribution to ensure homogeneity.
   • Electrical Safety Test: Conformance to CE, UL/CSA standards where applicable.
   • Performance Validation: Operational tests mimicking real-world conditions.

Fig 1: Internal components and construction of a high-performance smokehouse.

Sausage Smokehouse (One Door, One Trolley) Key Specifications

Parameter	Specification	Benefit/Description
Model Type	Single Door, Single Trolley Smokehouse	Optimized for batch processing, compact footprint.
Nominal Capacity	Approximately 150-250 kg/batch (depending on product size)	Ideal for small to medium-scale production.
Heating Method	Electric heating (Standard), Steam heating (Optional)	Flexibility to integrate with existing utility infrastructure.
Total Power (Electric)	Typically 25-40 kW (Heaters + Fan + Motor)	Efficient energy consumption for desired thermal performance.
Temperature Range	Adjustable, typically 20°C - 100°C (Drying, Smoking, Cooking)	Versatile for various meat products and processing steps.
Humidity Control	Integrated spray system, up to 95% RH	Essential for product moisture retention and optimal smoking conditions.
Material Construction	Food-grade SUS304 Stainless Steel (Internal & External)	Superior corrosion resistance, hygiene, and durability.
Control System	PLC with Touchscreen HMI (User-friendly interface)	Automated recipe management, data logging, precise process control.
Smoke Generation	Electric Smoke Generator (Sawdust/Wood Chips)	Consistent and controllable smoke density for desired flavor and color.
Air Circulation	Powerful Axial Fan with adjustable speed, bi-directional airflow	Ensures uniform heat, smoke, and humidity distribution for consistent product.
Dimensions (Approx.)	1800mm (L) x 1200mm (W) x 2500mm (H) - customizable	Compact design for efficient use of floor space.

Typical Application Scenarios:

• Artisanal Sausage Production: Ideal for small and medium-sized butchers and delicatessens producing specialty sausages like frankfurters, bologna, salami, and cured hams, ensuring consistent flavor and texture profiles.
• Smoked Poultry and Fish: Excellent for processing smoked chicken, duck, and various fish types (e.g., salmon, mackerel) to achieve delicate flavors and perfect doneness.
• R&D and Pilot Plants: Its precise control and smaller capacity make it perfect for product development, testing new recipes, and pilot production runs before scaling up.
• Catering and Institutional Kitchens: For large-scale catering operations or institutional facilities requiring consistent, high-quality smoked products on demand.

Key Technical Advantages:

• Precision Process Control: The integrated PLC and HMI system allow for highly accurate programming of temperature, humidity, and smoke intensity across multiple processing stages. This ensures repeatable results and consistent product quality, crucial for brand reputation.
• Uniformity of Processing: A powerful, bi-directional axial fan system ensures exceptional air circulation, distributing heat, smoke, and moisture evenly throughout the chamber. This eliminates cold spots and ensures every product on the trolley is uniformly processed.
• Energy Efficiency: Constructed with high-density thermal insulation, the smokehouse minimizes heat loss, leading to reduced energy consumption during extended operational cycles. Optimized heating elements and fan motors further contribute to lower operating costs.
• Superior Hygiene & Cleanability: Full SUS304/SUS316 stainless steel construction with smooth, crevice-free welds prevents bacterial accumulation. An integrated CIP (Cleaning-In-Place) system or high-pressure spray system facilitates quick and thorough cleaning, adhering to stringent HACCP guidelines.
• Durability & Longevity: Robust mechanical design and high-grade material selection ensure exceptional operational lifespan and minimal maintenance requirements, providing a strong return on investment.
• Modular and User-Friendly Design: The single-trolley system simplifies loading and unloading, improving workflow. The intuitive HMI allows operators to easily manage recipes and monitor processes, minimizing training time.

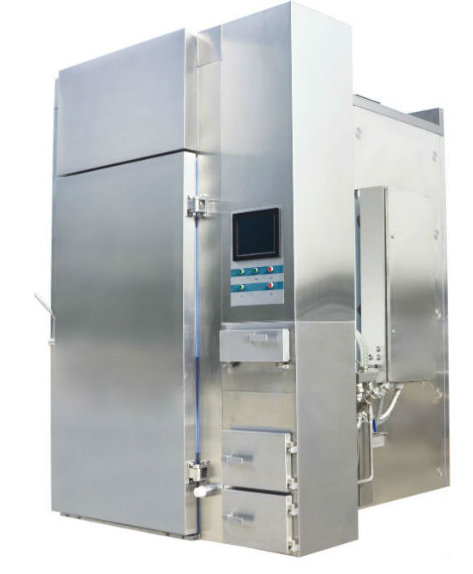

Fig 2: A Sausage Smokehouse one door one trolley in operation, highlighting its compact and efficient design.

Comparison: Bossin Machinery vs. Generic Competitors

Feature/Aspect	Bossin Machinery	Generic Competitor (Average)
Material Quality	Certified Food-Grade SUS304/SUS316 Stainless Steel, superior thickness	Often SUS201 or thinner SUS304; sometimes non-certified.
Welding & Finish	Advanced TIG welding, polished/passivated surfaces for hygiene.	MIG welding, rougher finishes, potential crevices.
Control System	High-end PLC (Siemens/Schneider) with intuitive HMI, robust programming, data logging.	Basic microcontrollers or older PLC models, limited features, less intuitive interface.
Energy Efficiency	Optimized insulation (100-150mm thick), efficient heating/fan systems, low heat loss.	Thinner insulation, less efficient components, higher energy consumption.
Uniformity of Processing	Powerful bi-directional fan, precisely engineered air ducts for excellent uniformity.	Basic fan system, uneven airflow, potential for inconsistent product.
Certifications & Compliance	ISO 9001, CE, designed to meet HACCP principles, FDA-compliant materials.	May lack comprehensive certifications or struggle with international standards.
After-Sales Support	Dedicated 24/7 technical support, extensive spare parts inventory, remote diagnostics.	Limited availability, slow response times, difficulty in sourcing spare parts.
Customization	High degree of customization for heating, smoking, capacity, and control features.	Standardized models with minimal customization options.

Customization Capabilities:

• Heating Source: Options include electric, direct steam, or indirect steam coils to align with plant utility availability and energy cost structures.
• Smoke Generation: Choice between friction smoke generators for dense, consistent smoke, sawdust burning smoke generators for traditional flavors, or liquid smoke atomizers for specific profiles and reduced particulate matter.
• Control System Upgrades: Integration with higher-tier PLCs (e.g., Allen-Bradley), SCADA systems for plant-wide monitoring, and remote access capabilities for diagnostics and recipe management.
• Dimensions & Capacity: Modifications to chamber height, width, and depth to accommodate specific trolley sizes or product hanging requirements, optimizing batch capacity without compromising footprint.
• Special Features: Addition of chilling systems, advanced air filtration for cleaner exhaust, integrated drying units, or customized product handling systems.

Fig 3: Interior view demonstrating uniform air circulation and trolley design.

Case Study 1: Regional Artisanal Butcher Shop

• Challenge: A growing artisanal butcher shop needed to increase production of specialty smoked sausages while maintaining hand-crafted quality and consistency, replacing an older, less efficient manual smoker.
• Solution: Implemented a customized Sausage Smokehouse one door one trolley with electric heating and a precision sawdust smoke generator, integrated with a user-friendly HMI.
• Outcome: Achieved a 30% increase in weekly smoked sausage output, a 15% reduction in processing time per batch, and a verifiable 10% improvement in product consistency (color, flavor, moisture), leading to enhanced customer satisfaction and repeat business. Energy consumption was reduced by an estimated 12% due to superior insulation.

Case Study 2: Seafood Processing Startup

• Challenge: A new seafood processing company required a versatile smokehouse for various smoked fish products, demanding strict temperature control and exceptional hygiene to meet export standards.
• Solution: Installed a Sausage Smokehouse one door one trolley with steam heating for rapid temperature changes, a liquid smoke atomizer for controlled flavor, and an enhanced CIP system. SUS316 was used for all food contact areas.
• Outcome: Successfully diversified product offerings with high-quality smoked salmon and mackerel. The precise humidity control significantly reduced product weight loss during drying and smoking phases by an average of 5%, translating into higher yields and profitability. Compliance with stringent food safety audits was easily demonstrated.

Expertise & Experience:

• With over 15 years in the B2B food processing machinery sector, Bossin Machinery's engineering team possesses deep domain knowledge in thermal processing, food hygiene, and automation.
• Our R&D department continuously innovates, integrating the latest advancements in control systems and material science to enhance product performance and operational efficiency.
• Our smokehouses are designed with practical experience from hundreds of installations globally, providing insights into diverse operational environments and product requirements.

Authoritativeness:

• Certifications: Bossin Machinery operates under an ISO 9001:2015 certified Quality Management System, ensuring consistent product quality and process control. Our equipment proudly carries CE certification, signifying compliance with European health, safety, and environmental protection standards.
• Industry Standards: Materials used, particularly stainless steel (SUS304/SUS316), meet international standards such as ASTM A240 for food contact and corrosion resistance. Design principles adhere to HACCP (Hazard Analysis and Critical Control Points) guidelines to facilitate food safety compliance for our clients.
• Partner Clients: We serve a diverse portfolio of clients ranging from emerging food startups to established multinational corporations, a testament to our capabilities and reliability.

Trustworthiness:

• Transparent Sales & Service: We provide detailed quotations, clear lead times, and comprehensive documentation for every purchase. Our after-sales service is designed for rapid response and efficient issue resolution.
• Warranty & Guarantees: All Bossin Machinery products are backed by a robust warranty (typically 12-24 months on parts and workmanship), demonstrating our confidence in our manufacturing quality.
• Client Feedback: "The Bossin smokehouse has transformed our production. The consistency is remarkable, and their support team is exceptional." - CEO, Premium Meats Inc. (Customer feedback example).

Fig 4: Control panel of the smokehouse, showcasing advanced HMI for precise operation.

Q1: What types of products can be processed in the Sausage Smokehouse one door one trolley?

A1: This versatile smokehouse is designed for a wide array of meat products, including various types of sausages (e.g., frankfurters, bologna, salami), smoked hams, poultry (chicken, duck), and fish (e.g., salmon, trout).

Q2: How is the smoke generated, and can it be customized?

A2: Standard units feature an electric smoke generator using sawdust or wood chips. Yes, it can be customized to include a friction smoke generator for denser smoke or a liquid smoke atomizer for specific flavor profiles and reduced emissions, depending on your product and regulatory needs.

Q3: What are the cleaning and maintenance requirements?

A3: The unit is constructed from food-grade stainless steel with smooth welds for easy cleaning. It features an integrated high-pressure spray system for quick and thorough wash-down. Regular cleaning after each batch and periodic checks of electrical components, seals, and heating elements are recommended. Comprehensive maintenance manuals are provided.

Q4: What is the estimated lead time for delivery and installation?

A4: Standard models typically have a lead time of 6-8 weeks from order confirmation. Customized configurations may require 10-14 weeks. Installation is straightforward and typically completed within 1-2 days by our technicians or client-trained personnel.

• Lead Time & Fulfillment: Standard models of the Sausage Smokehouse one door one trolley generally have a production and delivery lead time of 6 to 8 weeks, subject to current order volumes and specific customization requests. Detailed fulfillment schedules are provided at the time of order confirmation, including shipping and installation timelines.
• Warranty Commitment: Each smokehouse is covered by a comprehensive 12-month warranty on all mechanical and electrical components, effective from the date of commissioning. Extended warranty options are available upon request, providing additional peace of mind and protection for your investment.
• Customer Support: Our dedicated technical support team is available 24/7 to address any operational queries or technical issues. We offer remote diagnostics, on-site service by factory-trained technicians, and prompt supply of genuine spare parts to minimize downtime. Comprehensive operator training and technical documentation are also included to ensure your team is proficient in operating and maintaining the equipment.
