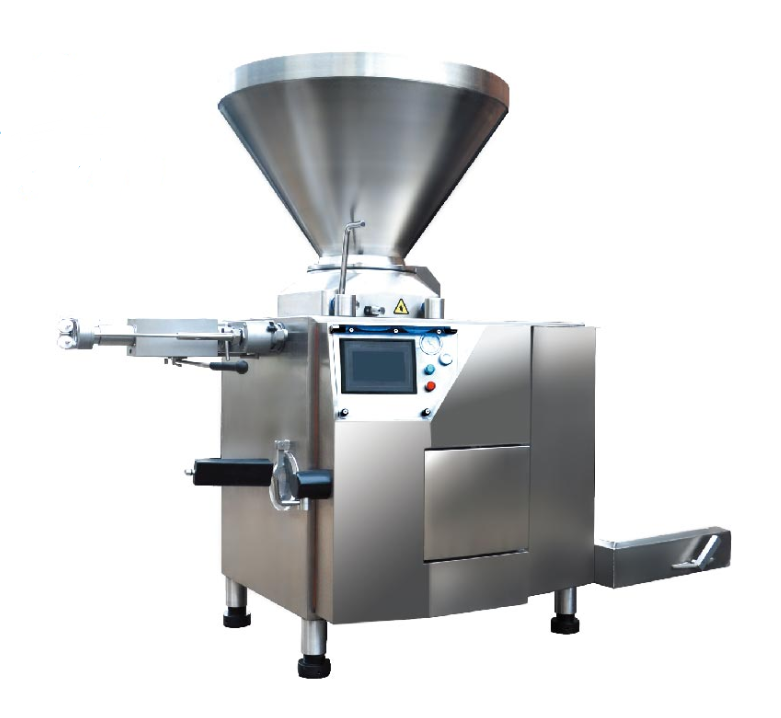

GC9PLUS-A Vacuum Filler

Automatic sausage stuffer,Sausage making machine, sausage machine. meat industry

Sausage machine for sausage filler /stuffer,with vacuum  BUSCH Brand

Max direct filling capacity: 6500kg/h

Meat pump housing output pressure: 50bar

The meat pump is drive by servo motor through redactor by gear. The gearbox adopts the hard gear to change the speed to drive. Built-in gear pump provide lubrication oil , protect ensure the service life of gear.

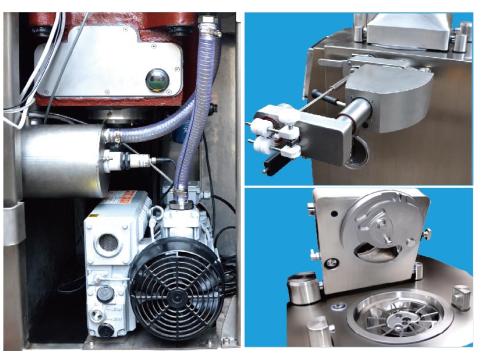

The vacuum pump use BUSCH 40 model, it is a Germany famous brand. Vacuum valve control automatically vacuum channel’s start on/off.

The meat material can not go inside the vacuum pump even if the very thin meat material.

The vacuum filler is equipped with the lifting device, which is matched with 200L meat trolley for loading the meat material.

Meat pump housing, rotor, vane and CAM use alloy steel. Special heat treatment.

The parts are produced are adopted the special heat treatment technique, highly smooth surface, easily to be cleaned up.

Function:

 parts are processed by CNC equipments high procession, long service life

 accurate portion

good sealing .high waterproof  imported Germany vacuum pump ,best vacuum effects, no air in the product

intuitive touch screen

 servo system

 good hygiene ,HACCP standard

  easy to maintenance

Technical data

Packaging & Shipping

  Free fumigation plywood cases or suitble for export package .
