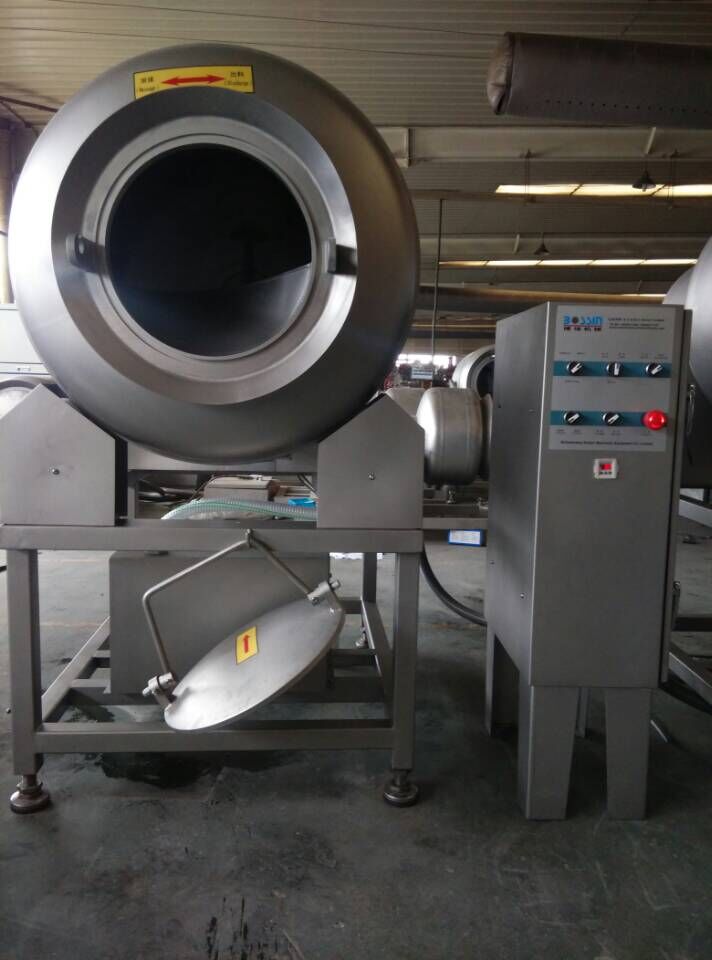

VACUUM TUMBLER

Function and Working Principle

1.The meat will be massaged, threshed and held by rotating paddle under forced circulation and be processed under vacuum and natural pressure condition alternately and that will accelerate the brine infiltration and the dissolving and extraction of parapeptone. By this method, the product ratio will be improved.

Vacuum tumbler is sued for pork ,beef meat , chicken, fish etc meat marinating ,massaging ,kneading, can make the meat absorb food spices water fully. Then can make the product much more tender and tasteful.
ويڪيوم ٽمبلر مشين گوشت جي توانائي جي تبديلي جي جسماني پروسيسنگ مهيا ڪري سگهي ٿي، گوشت جي پروسيسنگ جي هڪ لازمي ٽيڪنالاجي، ۽ سوز جي رفتار کي تيز ڪرڻ لاءِ دستياب طريقي جو هڪ قسم آهي، ميڪيڪل علاج کي اڳتي وڌايو گوشت کي رولنگ ۽ گونڌڻ ذريعي، لوڻ جي حل ٿيندڙ البومينائيڊل جي تجزيه کي وڌايو، پيداوار جي شرح ۽ پيداوار جي معيار کي بهتر بنائڻ.

خاصيتون

Two kinds ,one iskey buttons operation, simple operation.

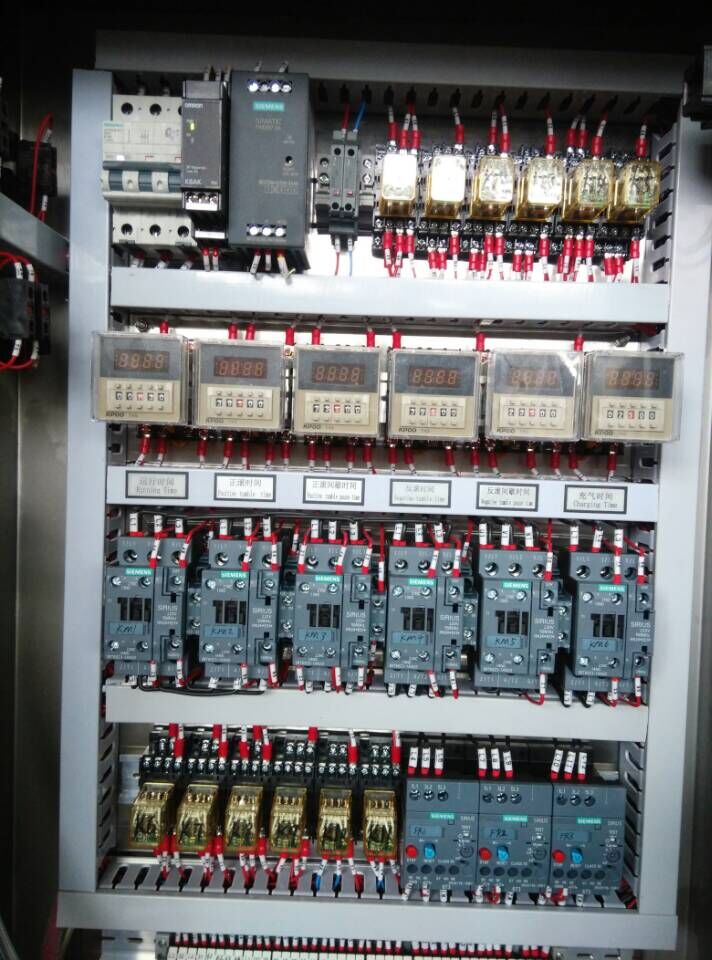

The other is adopt PLC controller.It operates automatically and any kind of data can be set easily by touch screen. The operation is safe and reliable.

2.1 Continuously variable speed by inverter and the start is stable. The operation speed can be adjusted within the range of 4-12 rpm. It suits many kind of processing condition.

2.2 Control positive rotations, inversion rotation speed , intermission, charge air, rotation rate, vacuum and atmospheric pressure according to customer’s requirement and could realize independent assortment. Adopt PLC, soft startups; touch screen control that can store 100 formulations.You can set the parameters, the vacuum time, speed, positive and reserve rotation times, total time can be set on the touch screen.

Using breathing tumbling that makes the raw meat be processed under vacuum and natural pressure condition alternately and processing time will be shortened effectively.
Vacuum suction system assisting for the loading. Over 1000L have this function.

Vacuum intake. Meat output in inverse rotation.

Bigger intake hole can put in powder or other additives easily.

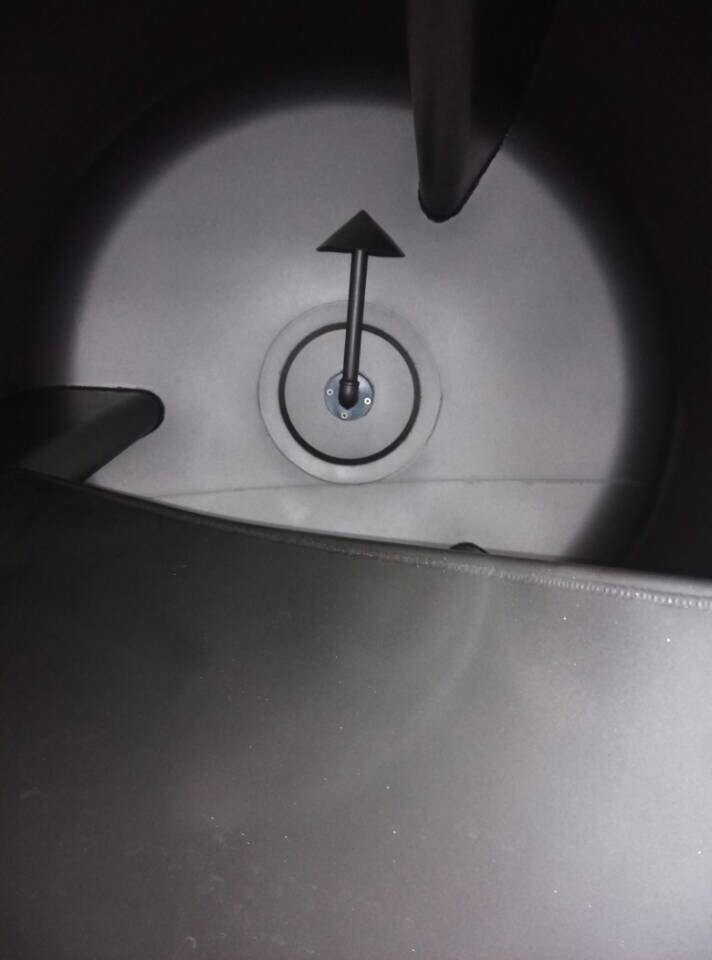

There is a hole designed in the middle of the drum especially for cleaning and drain, which will enable the drum be cleaned completely.
It is made of high quality stainless steel and the component adopted for electrical controlling and vacuum controlling are world-famous brand, which are reliable and durable.
Propeller is designed distinctively, positive rotation for rolling, kneading and knocking, inversion for massaging.
ٽيڪنيڪل ڊيٽا

موڊ	خارجي طول و عرض ايم ايم	حجم L	ظرف ڪلو	پاور ڪلوواٽ		ويڪيوم ايم پي اي	گردش جي رفتار rpm			وزن ڪلو
موڊ	خارجي طول و عرض ايم ايم	حجم L	ظرف ڪلو	موٽر	ويڪيوم پمپ	ويڪيوم ايم پي اي	ٻيڻو رفتار	اڪيلو	ضابطي جي رفتار	وزن ڪلو
جي آر 20	945×515×800	20	10	0.37	0.25	-0.09	/	9	1.8-9	130
جي آر 50	1300×860×940	50	20	0.45/0.75(0.55)	0.55		6/12	8	4-12	200
جي آر 100	1370×860×940	100	20-50	0.45/0.75(0.55)						250
جي آر 200	1300×915×1265	200	50-100	0.45/0.75(0.55)						285
جي آر 500	1580×1115×1530	500	200-300	0.85/1.5(0.55)						440
جي آر 1000	2190×1300×1720	1000	400-600	1.5	1.1			6		730
جي آر 1600	2225×1500×1940	1600	800-1000	2.2/3.3(3)	2.2		6/12	12	4-12	1242
جي آر 2500	2695×1745×2130	2500	1200-1400	5.5	4		/		3-12	1598
جي آر 3500	2750×1945×2300	3500	1600-1800	7.5	4		/		3-12	1794
